What tastes good moves – drives for food & beverage
Food & Beverage Technology
Drive solutions for hygienic, reliable and efficient processes
The clean solution for your production – drives for food and beverages
In food and beverage technology, drives must not only be powerful, but also particularly reliable, easy to clean and often hygienically harmless. Our gearboxes and geared motors are designed to meet these requirements – compact, durable and available in protection classes up to IP56. For individual requirements, we develop special gearboxes that are precisely matched to your machine environment.
Typical areas of application
- Conveyor technology for dough pieces, bottles, crates or packaging
- Filling systems for liquids or paste-like products
- Mixing and dosing systems
- Packaging machines, labellers, cartoners
- Slicing and portioning machines
- Cleaning lines and circulation systems
- Intelligent conveyor systems
Geared motors for the food industry
01.
Choice of worm gears

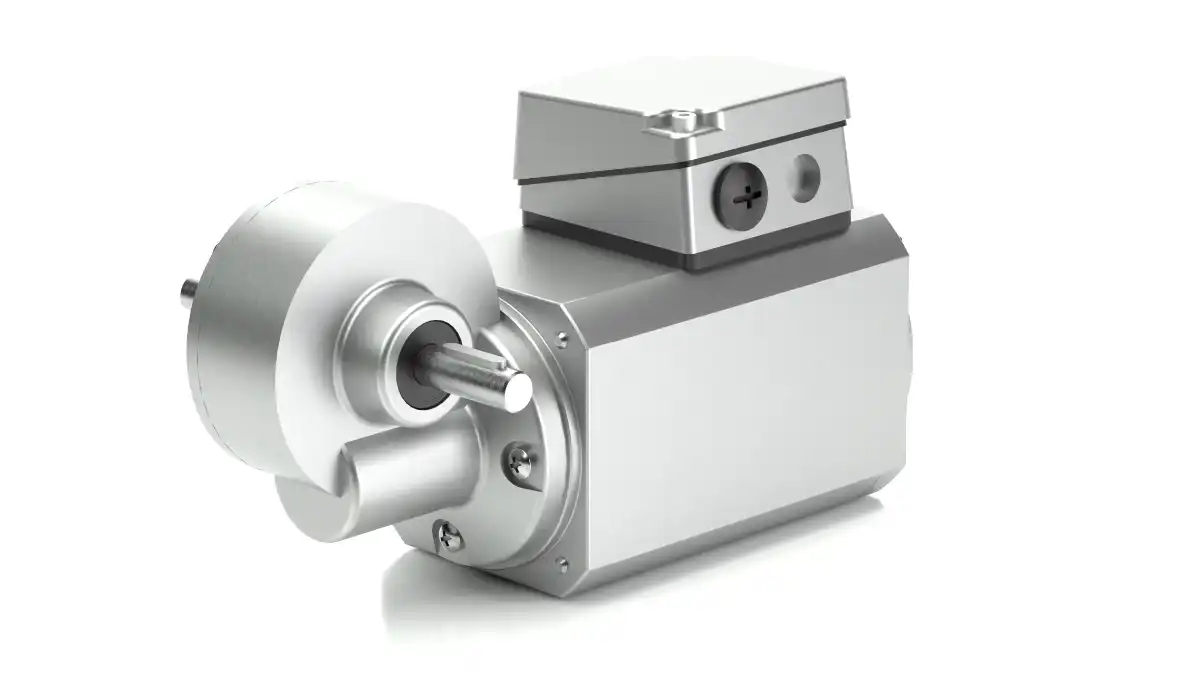

SN5
Nominal torques
5 – 15 Nm
Ratios
i= 2.5 – 167
Output shaft
Hollow Shaft, Solid Shaft
Advantages
Compact all-rounder with smooth-jacketed engine.
Data Sheets

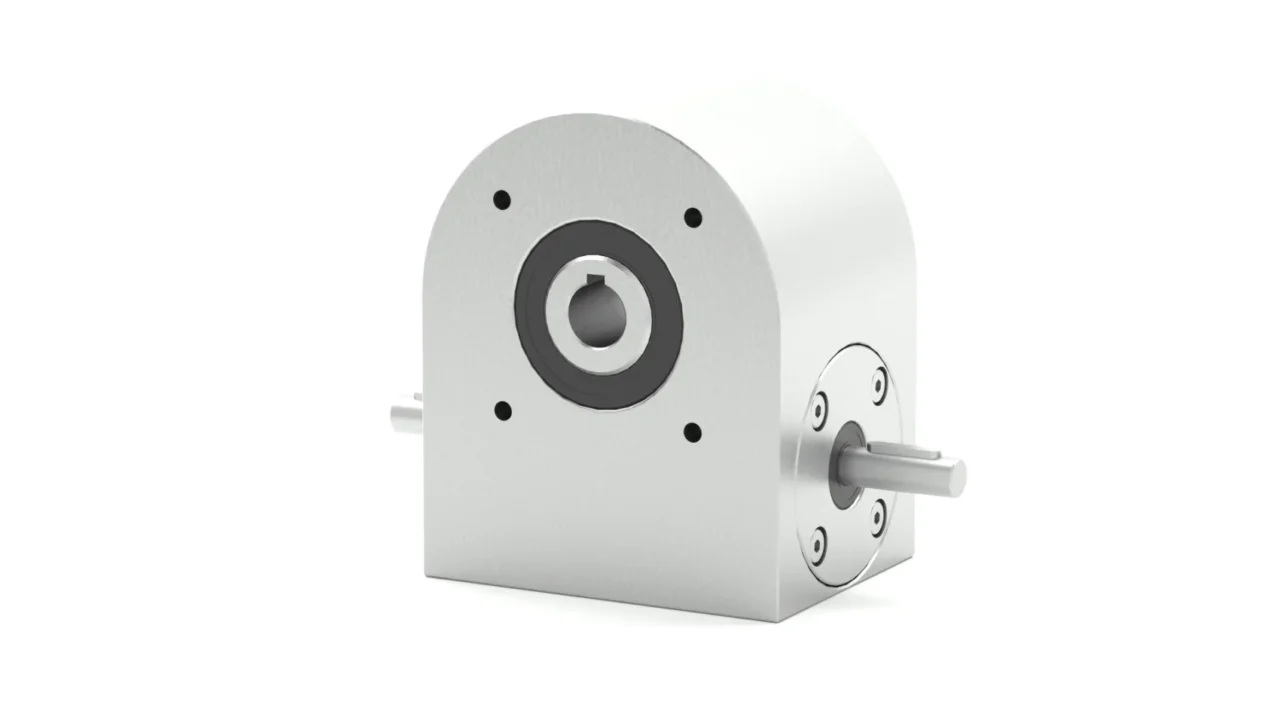

SN3
Nominal torques
11 – 17 Nm
Ratios
i= 5 – 75
Output shaft
Hollow Shaft, Solid Shaft
Advantages
Versatile all-rounder for standard conveyor systems with medium loads.
Data Sheets

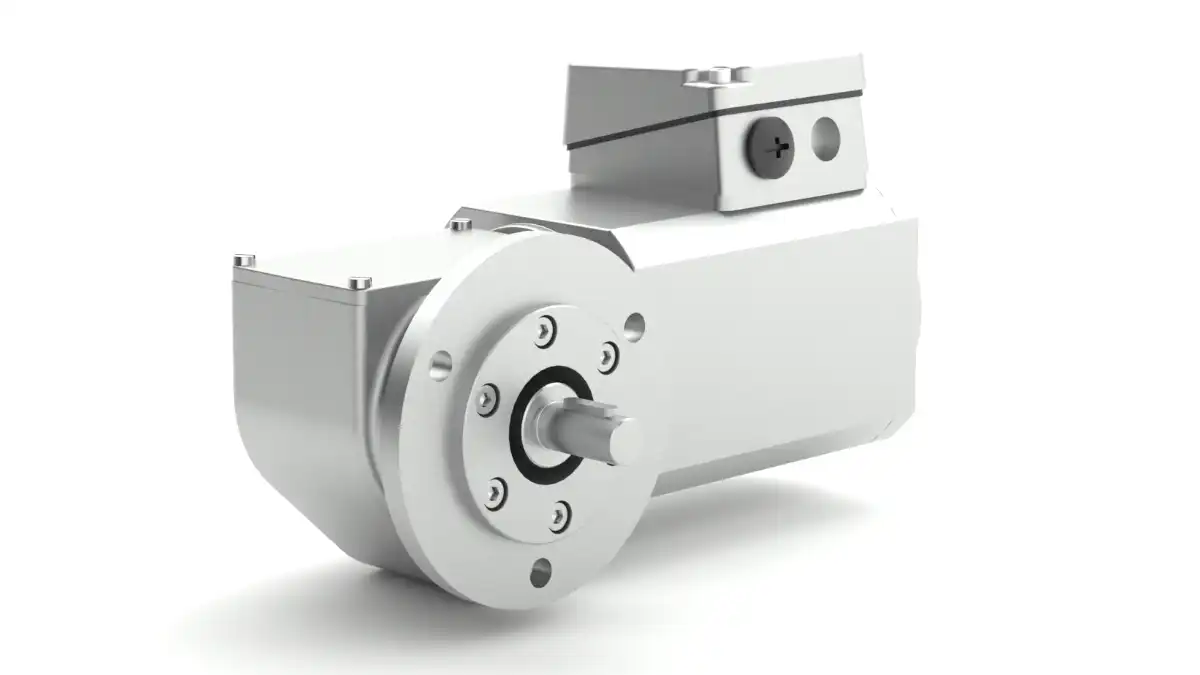

SN12F
Nominal torques
25 Nm
Ratios
i= 12.5 – 835
Output shaft
Hollow Shaft, Solid Shaft
Advantages
Robust solution for long running times and resilient conveyor lines.
Data Sheets
CLA213
Nominal torques
38 Nm
Ratios
i= 60
Output shaft
Solid shaft
Advantages
Compact design
Data Sheets
Your advantages at a glance
Technical highlights
Hygienically designed
Ideal for use in sensitive production areas (smooth surfaces, closed designs, with corrosion protection on request)
Stainless steel and corrosion protection options
for high-pressure and chemical cleaning
IP66/67/69K Certified Actuators
Quickly available and optimal for many applications
Safe design for continuous operation
Thermally and mechanically designed for long-term reliability
Compatible with food standards
e.g. EHEDG, FDA-compliant materials on request
Fast availability & individual adaptation
Many sizes from stock, special solutions can be implemented in close coordination
Benefits for your industry
Advantages of worm gears in food technology
Compact use
Thanks to their space-saving design, worm gearboxes fit easily into conveyor lines and machine housings.
Extra quiet
Ideal for noise-sensitive production areas due to quiet, low-vibration operation.
Self-locking
The integrated holding function prevents reversal – without additional brakes.
Easy to clean
Smooth housing shapes support hygienic design and easy cleaning.
High reduction in one step
Large gear ratios can be achieved in a space-saving manner – ideal for low belt speeds.
Suitable for wet areas
With IP65 design, it can also be used reliably in cleaning zones.
Advantages of cylindrical gearboxes in food technology
Robust in continuous operation
Reliable for applications with high mileage and continuous operation.
Efficient in energy consumption
With high efficiency, perfect for economical shift operation.
Standard motor compatible
Easy mounting of IEC motors for quick integration and replacement.
Powerful and uniform
Ideal for constant feed movements in mixers or packaging plants.
Flexible use
Wide range of sizes to suit different performance requirements.
Thermally resilient
Can be used reliably even with limited ventilation in closed systems.
Advantages of planetary gearboxes in food technology
Compact and powerful
High torques with minimal installation space – ideal for modular machines.
Low backlash and precise
Perfect for positioning tasks with exact repeatability.
Fast and dynamic
Suitable for pick-and-place or sorting systems with cycle operation.
High efficiency
Energy-efficient in continuous operation with low power dissipation.
Low-maintenance
Minimized service costs for high system availability.
Versatile mounting
Can be flexibly integrated into horizontal, vertical or inclined installation positions.
Experience the flexibility of our modular system
With our modular system, we offer flexible solutions that meet a wide range of requirements and industries. Thanks to modular components, gearboxes and motors can be individually combined to create customized drives for various applications.
Application Examples
Applications for worm gears in food technology
Conveyor belts for dough pieces or packaging
Quiet, compact drive at low speed – ideal for feeding lines or intermediate conveying.
Drives in labeling machines
Space-saving solution with smooth movement for labeling arms or conveyor sections.
Lifting devices in cleaning lines
Lifting or swivelling of conveyor modules for cleaning or maintenance purposes.
Portioning stations with holding function
Rotary movements with self-locking for precise control of portioning arms.
Separation mechanisms in filling lines
Positioning or stopping bottles, glasses or cups in cycle mode.
Small lifting units in packaging modules
Lifting of conveyed goods or gripping mechanisms with a smooth course of movement.
Applications for helical gears in food technology
Conveyor lines with constant feed
Robust drives for main conveyor lines with high loads or large product carriers.
Mixer drives in dough or sauce processing
Smooth drive at medium to high torques.
Lifting units for packaging systems
Vertical movements, e.g. for cartoners or carrier plates.
Feeding systems for filling systems
Synchronized feed units for bottles or cans.
Tilting modules with helical gears
Powerful movements with smooth running, e.g. with cutting waves.
Chain conveyors in container transport
Drive heavy or stacked products with high frictional force.
Applications for planetary gearboxes in food technology
Cycle modules with exact positioning
For labelling, filling or control stations with precise motion sequences.
Gripper axes in packaging lines
Short, precise movements for pick-and-place stations.
Rotary modules for conveyor plates or feeding platforms
Smooth rotation with high repeatability.
Adjustment axes for height adjustment
Stepless movement of guide units, e.g. for changing product formats.
Sorting arms with reset function
Dynamic control for flexible product guidance or ejection.
Positioning Systems in Robotics Modules
Compact solution for clock arms, camera positioning or sensor units.
