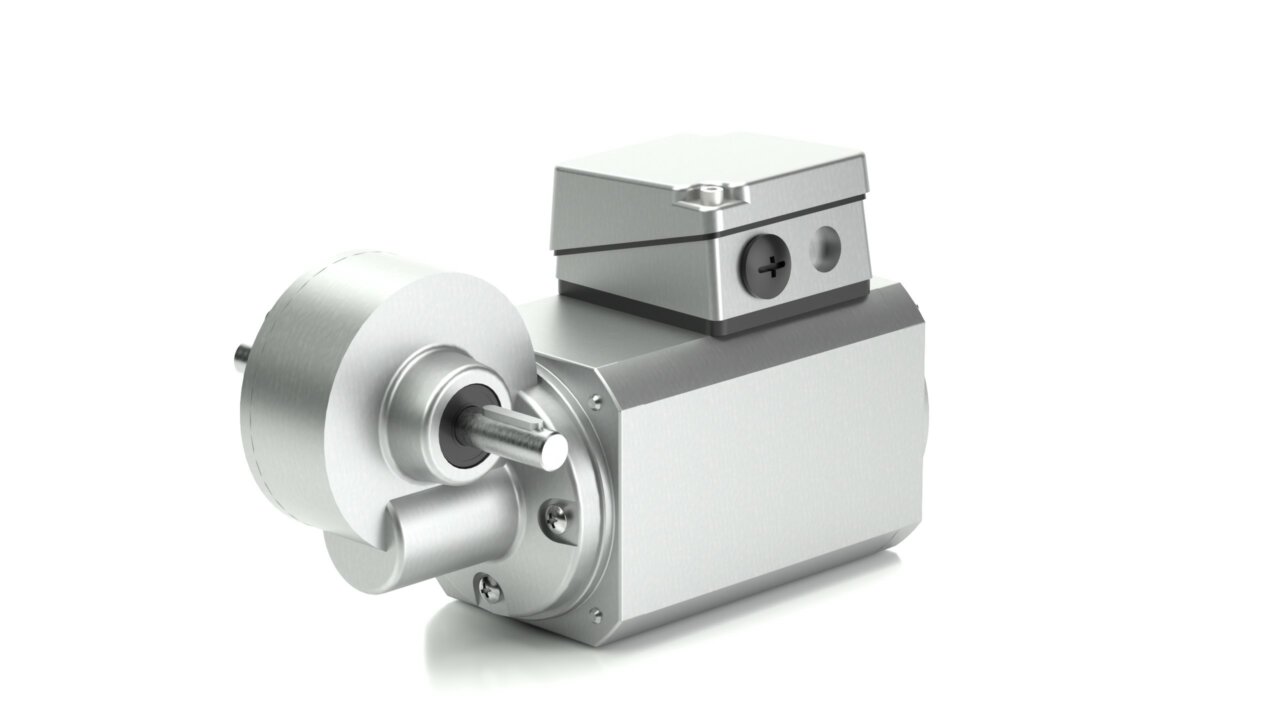

SN5-i100-90W Glattmantel IP56 WSK
- Designation
SN5-i100-90W Glattmantel IP56 WSK
- Gearbox type
Worm Gearbox
- Gearbox series
SN5
- Ratio
i= 100
- Eff. Torque
18 Nm
- Motor type
Smooth-bore motor, unventilated
- Motor power
90 Watt
Modular drive solutions:
Customize standard geared motors
Depending on the application, our single gear units can be supplied in various designs with three-phase current, AC or DC motors. We deliver immediately from stock - or assemble with short delivery time from stock components. We will support you in selecting one of our efficient drive solutions.
Thanks to our modular design, we can implement your requirements efficiently and promptly. This way, you receive a geared motor that not only excels technically but is also perfectly tailored to your needs.
Technical details
Technical data
Designation
SN5-i100-90W Glattmantel IP56 WSK
Gearing
Worm Gearbox
Series
SN5
Mounting type
Foot version
Motor type
Smooth-bore motor, unventilated
Supply voltage
Three-phase current 230V/400V
Output shaft
Solid shaft
Shaft size
10 mm
Ratio
i= 100
Output speed
18 rpm
Effective torque
18 Nm
Max. permissible torque
8.9 Nm
Lubricant
Lifetime lubricated and maintenance-free
- *1 Do not load the gear unit above the permissible torque!
Documents
Advantages
- Delivery time within 1 week
- Modular design
- Sustainable production
- High precision components
Technical performance data
Gearbox
- Gearbox type
Worm Gearbox
- Product description
SN5-i100-90W Glattmantel IP56 WSK
- Gearbox series
SN5
- Ratio
i= 100
- Mounting type
Foot version
- Flange size
– mm
- Output shaft
Solid shaft
- Shaft output
Right-angled
- Shaft size
10 mm
- Output speed
18 rpm
- Eff. Torque
18 Nm
- Max. permissible Torque
8.9 Nm
- Lubricant
Lifetime lubricated and maintenance-free
Electrical motor
- Motor type
Smooth-bore motor, unventilated
- Supply voltage
Three-phase current 230V/400V
- Motor power
90 Watt
- Motor speed
1400 rpm
- Protection class
IP56
- Insulation class
F
Available options for your configuration
Customize your selected geared motor to meet your exact requirements. In addition to the standard version, we offer you numerous options to configure your geared motor individually.
Lubrications
Choosing the right lubrication guarantees long service life and reliable performance. Different options are available depending on the environment and application.
- Standard lubrication for standard operating conditions
- High-temperature lubricant for demanding thermal applications
- Food-safe lubrication (NSF H1) for use in hygienic environments
- Low-temperature lubrication for cold-area applications
Output shaft
The output shaft can be customized to fit your machine. Various designs provide an optimal mechanical connection.
- Standard output shaft with key
- Special length according to customer specifications
- Hollow shaft for compact installation
- Stainless steel output shaft for corrosive environments
Paint finish
Our worm gear motors come in the standard color RAL 9006 (white aluminum). Other colors and special coatings are available upon request.
- Standard paint RAL 9006 (white aluminum)
- Additional RAL colors upon request
- Custom coatings on request
- Hygienic paint for food industry applications
Surface coating
We offer additional protective measures and coatings for use in harsh or hygienically sensitive environments. They enhance the service life and reliability of your drive system.
- Corrosion protection for damp or salty environments
- Hygienic surface coating for the food industry
- Chemical-resistant paint for harsh environments
- Enhanced sealing for higher IP protection
Operating mode
Our geared motors can be operated with different control concepts, allowing you to maintain full control over speed and torque.
- Operation with mounted frequency inverter
- SmartLine for precise and dynamic regulation
- EasyLine for easy manual operation
- Mains operation without inverter for standard applications
Additional functions
Expand your drive system with additional components to enhance safety, functionality, and monitoring.
- Electromagnetic motor brake
- Extra shaft sealing
- Temperature or rotational speed sensor
Features
Low noise
Gearmotors operate quietly and minimize vibrations for smooth operation.
Adaptability
Flexible gear ratios, torque, speed, shaft diameter, and flange sizes.
Fast delivery
Extensive stocks for shorter delivery times.
High ratios
Gear motors offer precise speed adjustments through a wide range of gear ratios.
Flexible mounting position
Gear motors enable easy integration through various mounting options and flexible alignment configurations.
Cost efficiency
Gear motors offer high performance with low operating costs and minimal maintenance requirements.
Can't find a suitable solution?
At Ruhrgetriebe, we develop customized gearbox solutions precisely tailored to your requirements. With innovative technology, high in-house production depth, and decades of experience, we create drive units that are not only reliable but also future-proof.
We work with you to find the perfect solution for your application.
